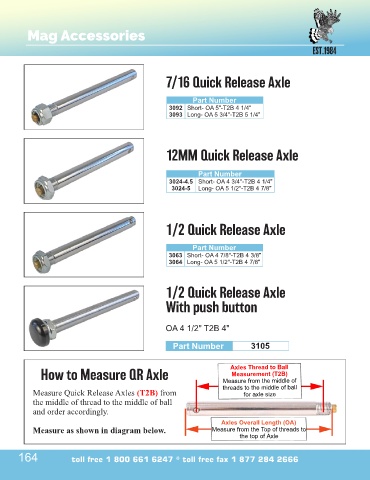

Page 174 - Nighthawk Partsbook 2026

Mag Accessories

EST.1984

7/16 Quick Release Axle

Part Number
3092 Short- OA 5"-T2B 4 1/4"
3093 Long- OA 5 3/4"-T2B 5 1/4"

12MM Quick Release Axle

Part Number
3024-4.5 Short- OA 4 3/4"-T2B 4 1/4"
3024-5 Long- OA 5 1/2"-T2B 4 7/8"

1/2 Quick Release Axle

Part Number
3063 Short- OA 4 7/8"-T2B 4 3/8"
3064 Long- OA 5 1/2"-T2B 4 7/8"

1/2 Quick Release Axle

With push button

OA 4 1/2" T2B 4"

Part Number 3105

Axles Thread to Ball
How to Measure QR Axle Measurement (T2B)
Measure from the middle of
2.92"
threads to the middle of ball
Measure Quick Release Axles (T2B) from for axle size
the middle of thread to the middle of ball
and order accordingly.

Axles Overall Length (OA)
3.36" op of threads to
Measure as shown in diagram below. Measure from the T
the top of Axle
